Home >> Products >> Panel PC
Panel PC
Back to list
Description
10.4 inch High Brightness Panel PC

1. CPU J1900+4G RAM(optional)+32G SSD(optional) / i3i5 i7optional
2. Resisitve / PCAP Touch Optional
3. ip65front or full ip65 or higher
4. Fanless Design
5. High brightness optional
6. Support customized design

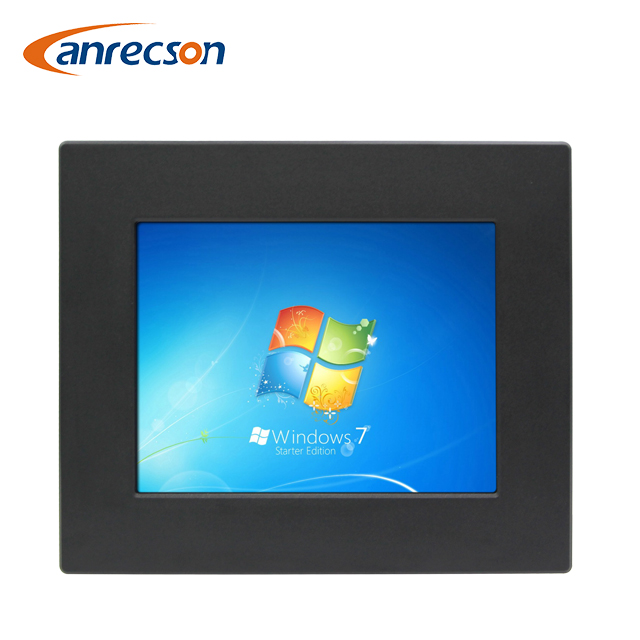

10高亮光感正面 副本.jpg

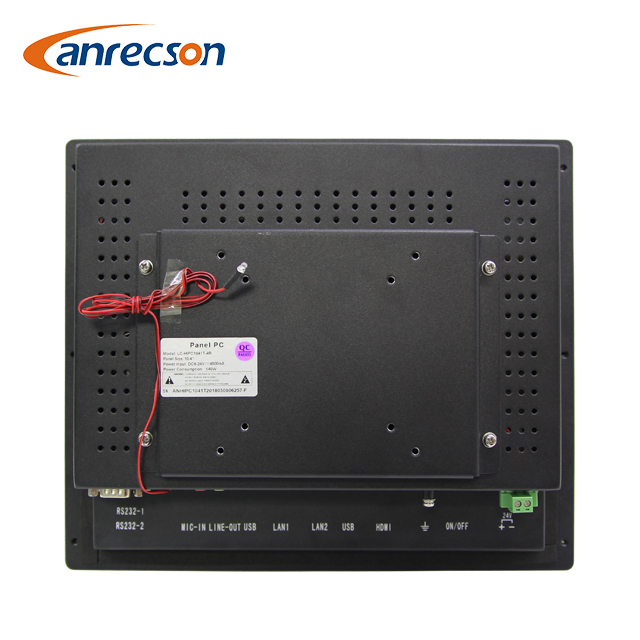

10高亮光感背面 副本.jpg

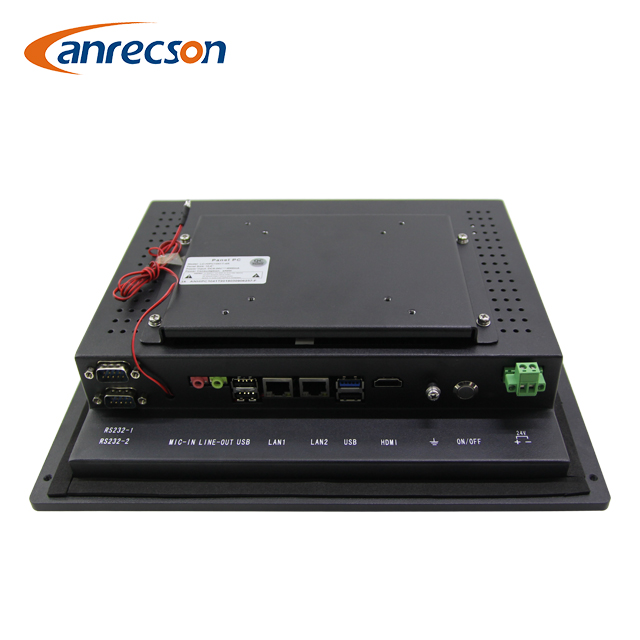

10高亮光感接口 副本.jpg


Specification
Specification
10.4" Industrial TOUCH  Panel PC all in one
Mode NameLC-IPC1041T-5R
Screen Size10.4″
Active Display Area (mm)211.2mm(W)×158.4mm(H)
Display Mode4:3
LCD TypeTFT-LCD
Resolution800×600
Display Color16.7M
Pixel Pitch(mm)0.264(H)×0.264(V)
Brightness(nits)1000cd/㎡
Contrast Ratio500:1
Viewing Angle 140(H) /110(V)
Response Time 5ms
BacklightLED backlights
Mother Board Configuration
CPUIntel Celeron J1900
RAMDDR3L 1066/1333 ; 2G/4G optional
Graphics  Intel HD Graphics, main frenquency 533MHz
SSDMSATA SSD 16G (optional)
Signal output1xHDMI
RS232 port 2xCOM (max 6xCOM,supporting RS422/485)
Internet Port2xRJ45
Audio Realtek HD ALC282
1xMIC, 1xLINE OUT,  3.5mm port
USB2xUSB3.0  2xUSB2.0 (max 6xUSB )
PIC-E port 1xmini PIC-E
OS systemWin7/Win8/Linux/Unix
Touch Type
Standard touch optionsResistive 5 wire  / capacitive touch
Customized touch optionsIR touch / SAW touch
Power supply
Power 12V
power comsumption 35W
Operating /Storage temperature -20～60℃
Humidity0(%RH)～85(%RH)
Mounting way embedded/panel mount (VESA optional)


Certificates

Our products have got CE, RoHS, FCC, CCC certificates. We also carry out a strict quality management system in accordance with ISO9001 requirements.

Our Company

Anrecson is a leading manufacturer, specializing in designing&producing LCD products, including touchscreen monitor, open frame monitor, industrial monitor, panel pc, digital signage, CCTV monitor and video wall, 4K Monitor, AHD/CVI/TVI/CVBS 4 in 1 monitor etc. The size ranges from 5 inch to 128 inch.


We own 15 engineers’ R&D department, which can meet your all kinds of customization requirement. We provide fast response and best solution according to each project. And professional equipment includes Pulse wave, shaking, static electricity, and temperature and humidity testing....


Anrecson Brand Monitors are widely used in traffic control center, broadcasting system, military, city square, shopping mall, bank,school and hospital,etc. Devices like ATM, Self-service kiosk, Transportation, Automatic Vending Machine, Gaming Machine, Pos, Medical Treatment, CNC Machine also use our Anrecson monitor.


Our products have got CE, RoHS, FCC, CCC certificates. We also carry out a strict quality management system in accordance with ISO9001 requirements.
