1. CPU J1900+4G RAM(optional)+32G SSD(optional) / i3i5 i7optional
2. Resisitve / PCAP Touch Optional
3. ip65front or full ip65 or higher
4. Fanless Design
5. High brightness optional
6. Support customized design
1. CPU J1900+4G RAM(optional)+32G SSD(optional) / i3i5 i7optional
2. Resisitve / PCAP Touch Optional
3. ip65front or full ip65 or higher
4. Fanless Design
5. High brightness optional
6. Support customized design
Specification | |

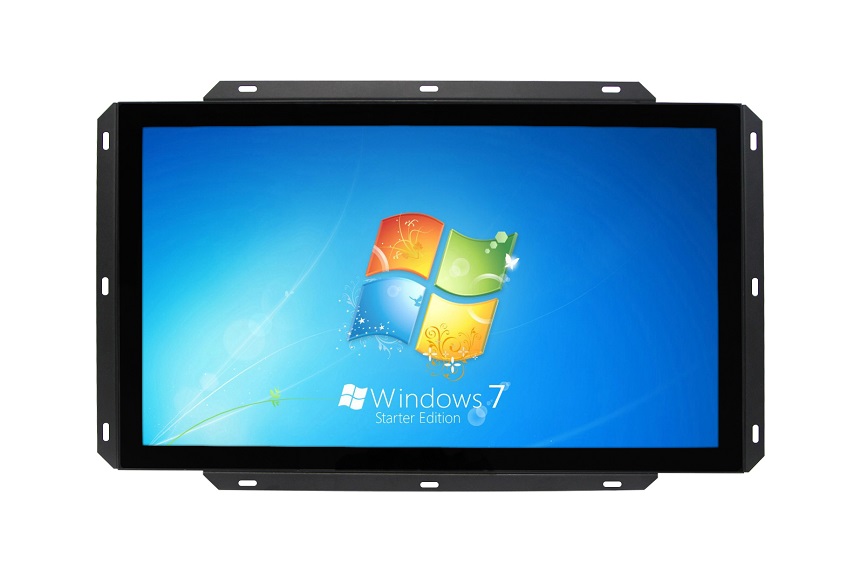

21.5" Industrial TOUCH Panel PC all in one | |
Mode Name | LC-IPC2201T-CA |
Screen Size | 21.5" |
Active Display Area (mm) | 476.64mm(W)×268.11mm(H) |
Display Mode | 16:9 |
LCD Type | TFT-LCD |
Resolution | 1920×1080 |
Display Color | 16.7M |
Pixel Pitch(mm) | 0.248(H)×0.248(V) |
Brightness(nits) | 250cd/㎡ |
Contrast Ratio | 1000:1 |
Viewing Angle | 170(H) /160(V) |
Response Time | 5ms |
Backlight | LED backlight |
Mother Board Configuration | |
CPU | Intel Celeron J1900 |
RAM | DDR3L 1066/1333 ; 2G/4G optional |
Graphics | Intel HD Graphics, main frenquency 533MHz |
SSD | MSATA SSD 16G (optional) |
Signal output | 1xHDMI |
RS232 port | 2xCOM (max 6xCOM,supporting RS422/485) |
Internet Port | 2xRJ45 |
Audio | Realtek HD ALC282 |
1xMIC, 1xLINE OUT, 3.5mm port | |
USB | 2xUSB3.0 2xUSB2.0 (max 6xUSB ) |
PIC-E port | 1xmini PIC-E |
OS system | Win7/Win8/Linux/Unix |
Touch Type | |
Standard touch options | capacitive touch |
Customized touch options | IR touch / SAW touch /Resistive 5 wire |
Power supply | |
Power | 12V5A |
power comsumption | 45W |
Operating /Storage temperature | -20~60℃ |
Humidity | 0(%RH)~85(%RH) |
Mounting way | embedded/panel mount (VESA optional) |
Anrecson is a leading manufacturer, specializing in designing&producing LCD products, including touchscreen monitor, open frame monitor, industrial monitor, panel pc, digital signage, CCTV monitor and video wall, 4K Monitor, AHD/CVI/TVI/CVBS 4 in 1 monitor etc. The size ranges from 5 inch to 128 inch.
We own 15 engineers’ R&D department, which can meet your all kinds of customization requirement. We provide fast response and best solution according to each project. And professional equipment includes Pulse wave, shaking, static electricity, and temperature and humidity testing....
Anrecson Brand Monitors are widely used in traffic control center, broadcasting system, military, city square, shopping mall, bank,school and hospital,etc. Devices like ATM, Self-service kiosk, Transportation, Automatic Vending Machine, Gaming Machine, Pos, Medical Treatment, CNC Machine also use our Anrecson monitor.
Our products have got CE, RoHS, FCC, CCC certificates. We also carry out a strict quality management system in accordance with ISO9001 requirements.
