Home >> Products >> Industrial Monitor
Industrial Monitor
Back to list
Description
21.5 Inch Full HD Industrial Embedded Monitor

21.5-inch full HD TFT LCD widescreen display
Ultra thin design for easy panel/wall installation
Supports industrial 24V DC power input and multiple installation methods: panel installation, wall installation, desktop installation, VESA installation

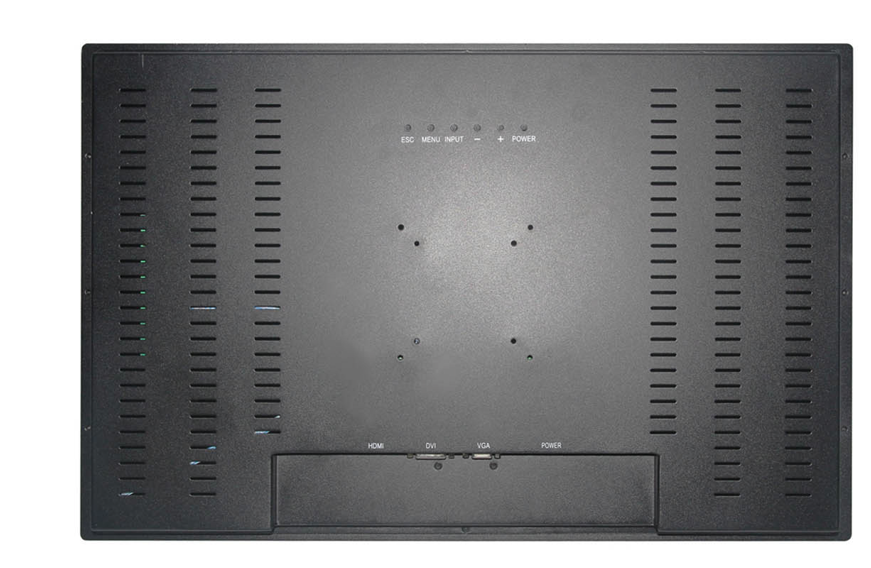

Deployment of OSD control board on the back cover
Projective capacitive screen with multi touch capability
IP65 Aluminum alloy front panel.

Product :





Specification


21.5 Inch Full HD Industrial Embedded Monitor Specifications:

21.5" Industrial LCD Monitor
Mode NameLC-MI22001
Screen Size21.5"
Active Display Area (mm)476.64mm(W)×268.11mm(H)
Display Mode16:9
LCD TypeTFT-LCD
Resolution1920×1080
Display Color16.7M
Pixel Pitch(mm)0.248(H)×0.248(V)
Brightness(nits)250cd/㎡
Contrast Ratio1000:1
Viewing Angle170(H) /160(V)
Response Time5ms
BacklightLED backlight
InterfaceVGA,DVI
Optional interfaceHDMI,BNC
PowerDC12V 3A 50HZ/ 60HZ/ 75HZ
Power Consumption≦28W
Plug & PlayDDC 1/2B
OSD ControlAuto adjust, Brightness, Contrast, Hori. / Vert. Position, Clock, phase, Color, Language..
MenuChinese/English(other languages supported)
Mount Way
MountingVESA 75mm/100mm,flanges at side option
Certificate ApprovalCE,RoHS,CCC,FCC,ISO9001(optional UL)
Warranty1.5 years
Application
ATM/ Kiosk/Transportation/ Industrial Automation/Medical Treatment




Certificates

Our products have got CE, RoHS, FCC, CCC certificates. We also carry out a strict quality management system in accordance with ISO9001 requirements.

Our Company

Anrecson is a leading manufacturer, specializing in designing&producing LCD products, including touchscreen monitor, open frame monitor, industrial monitor, panel pc, digital signage, CCTV monitor and video wall, 4K Monitor, AHD/CVI/TVI/CVBS 4 in 1 monitor etc. The size ranges from 5 inch to 128 inch.


We own 15 engineers’ R&D department, which can meet your all kinds of customization requirement. We provide fast response and best solution according to each project. And professional equipment includes Pulse wave, shaking, static electricity, and temperature and humidity testing....


Anrecson Brand Monitors are widely used in traffic control center, broadcasting system, military, city square, shopping mall, bank,school and hospital,etc. Devices like ATM, Self-service kiosk, Transportation, Automatic Vending Machine, Gaming Machine, Pos, Medical Treatment, CNC Machine also use our Anrecson monitor.


Our products have got CE, RoHS, FCC, CCC certificates. We also carry out a strict quality management system in accordance with ISO9001 requirements.
