Description

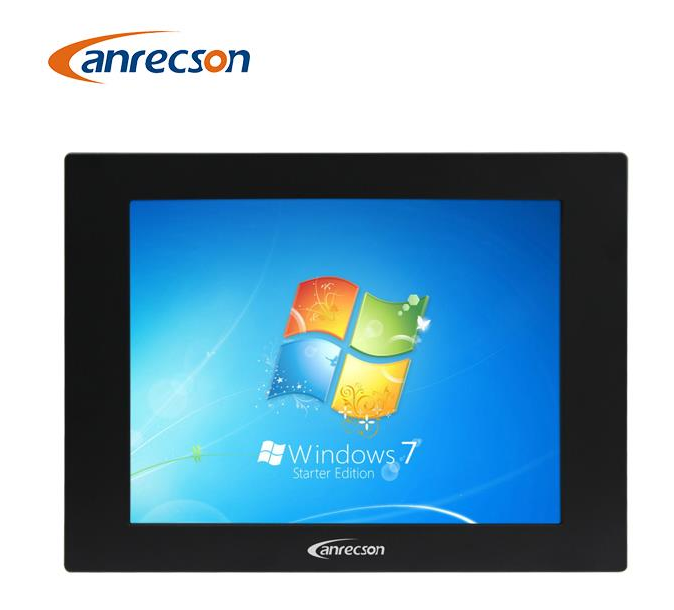

19 inch industrial grade embedded monitor

19″ Industrial Grade Panel Mount LCD Display
Meets IP65 Environmentally Sealed Touch Screen Standard (Capacitive or Resistive)
Wide operating temperature (-10C – +60C) 300 Nits of Brightness,
Adjustable Controls VGA, DVI and HDMI video connectors
1.5 Yeas Warranty



Specification

19 Inch Panel Mount Industrial Monitor


Bezel Type

Panel Mount

Screen Size

19.0" (Diagonal)

Aspect Ratio

4:3

Native Resolution

1280 x 1024 (Auto sync from 640 x 480 to 1280 x 1024)

Pixel Pitch

0.294mm x 0.294mm

Response Time

10ms (Typical, On/Off)

Type

TFT Active Matrix Liquid Crystal

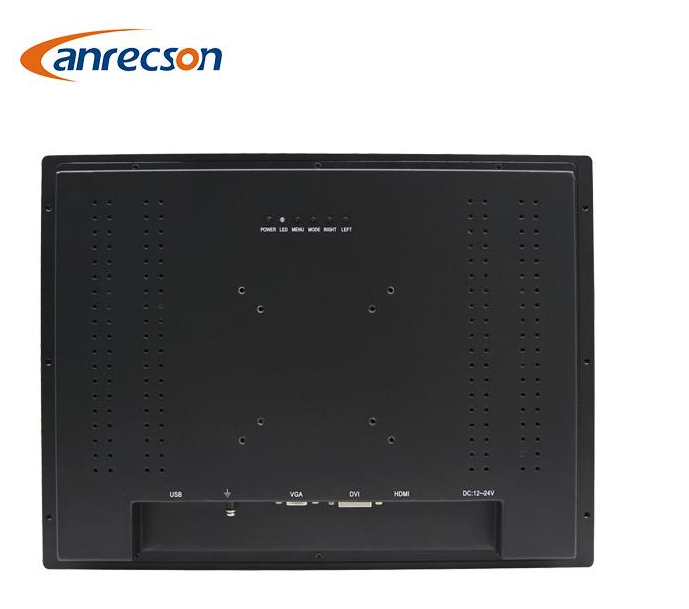

Video Input Connectors

VGA / HD-15
DVI Compliant Digital HDCP (DVI-D)
HDMI

Viewing Angle

170° / 170° (H / V) – (Viewing angle of LCD panel without touch)

Contrast Ratio

1000:1 (typical)

Luminance (Brightness)

350 cd/m2 typical at center (350 Nits)

Viewable Image Size

Horizontal: 14.81" / 376.32 mm, Vertical: 11.85" / 301.06 mm

Input

AC Adapter is Removable
DC Input: DC12V  3A   50HZ/ 60HZ/ 75HZ

AC Input: 100-240V, 50-60Hz, 1.5A

Control Buttons (Rear mounted)

Power, Left, Right, Menu

Controls On-Screen Display

Brightness, Contrast, Input Source, Color, Image Adjust, OSD Lockout

Environmental Rating

Standard Bezel: IP65 Front Panel (when properly installed) protection against windblown dust and rain, splashing water, and hose-directed water
Optional Stainless Steel Bezel: NEMA 4X / IP65 Front Panel (when properly installed) corrosion protection, protection against windblown dust and rain, splashing water, and hose-directed water

Environmental



Operating Temperature: -10C – +60C (14F – 140F)

Storage Temperature: -30C – +85C (-22F – +185F)
Operating: Relative Humidity 20% ~ 80%
Storage Relative Humidity: 20% ~ 80%

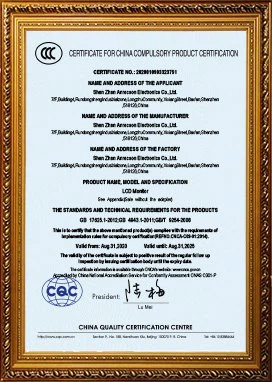

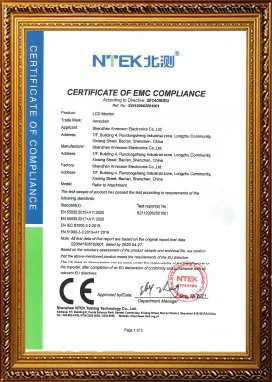

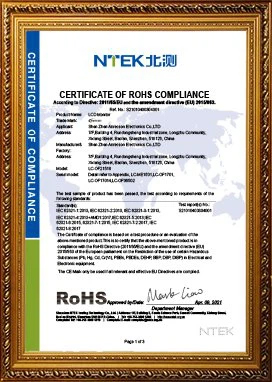

Certificates

Our products have got CE, RoHS, FCC, CCC certificates. We also carry out a strict quality management system in accordance with ISO9001 requirements.
