Home >> Products >> Industrial Monitor
Industrial Monitor
Back to list
Description
23.8 inch Open Frame Monitor

1. Sizes range from 5"-100"
2. Industrial grade AD Boards with wide temperature
3. Resistive/PCAP/IR/SAW touch type optional
4. High brightness/waterproof/anti-violence and so on optional
5. Outer Cases can be designed
6. OEM/ODM supported

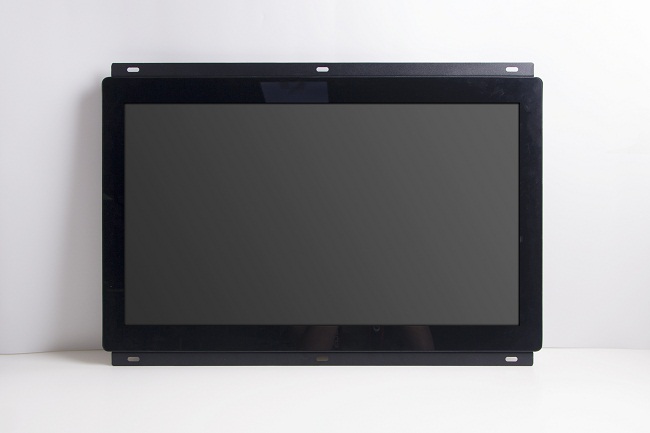

23.6 front.jpg

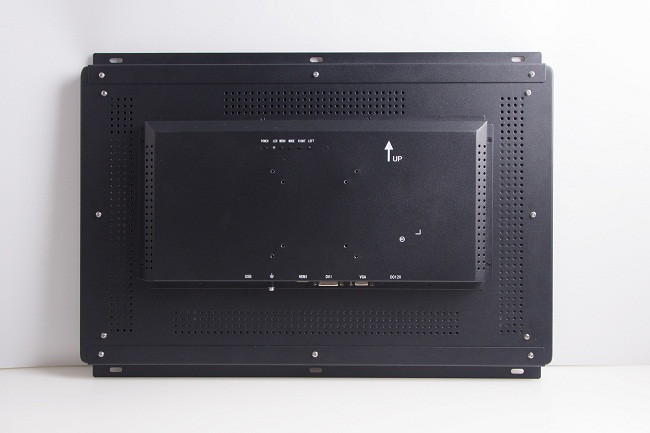

23.6 back.jpg

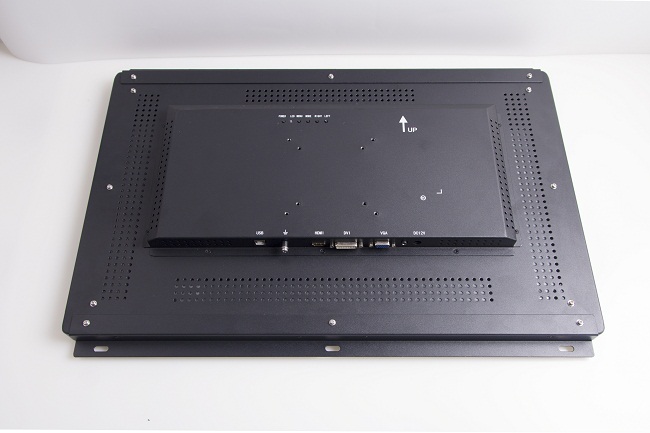

23.6 interface.jpg

Specification
Specification
23.8" Open Frame  TOUCH  Monitor
Mode NameLC-OF2401T-CA
Screen Size23.8"
Active Display Area (mm)527.04(W)×296.46(H) mm
Display Mode16:9
LCD TypeLED backlight
Resolution1920×1080
Display Color16.7M
Pixel Pitch(mm) 0.2745×0.2745 mm (H×V)
Brightness(nits)250cd/㎡
Contrast Ratio1000:1
Viewing Angle 178(H) /178(V)
Response Time 5ms
BacklightLED backlight
InterfaceD-Sub15 pin(VGA),DVI
Optional interfaceHDMI,BNC
PowerDC12V  3A   50HZ/ 60HZ/ 75HZ
Power Consumption ≦25W (Max)
Plug & PlayDDC 1/2B
OSD ControlAuto adjust, Brightness, Contrast, Hori. / Vert. Position, Clock, phase, Color, Language..
MenuChinese/English(other languages supported)
TOUCH
Standard touch opetions
Customized touch optionsprojected capacitive touch
Mount Way
Mounting VESA 75mm/100mm,flanges at side option
Certificate ApprovalCE,RoHS,CCC,FCC,ISO9000(optional UL)
Warranty1.5 years
Application
ATM/ Kiosk/Transportation/ Industrial Automation/Medical Treatment


Certificates

Our products have got CE, RoHS, FCC, CCC certificates. We also carry out a strict quality management system in accordance with ISO9001 requirements.
