Digital Signage
Back to list
Description

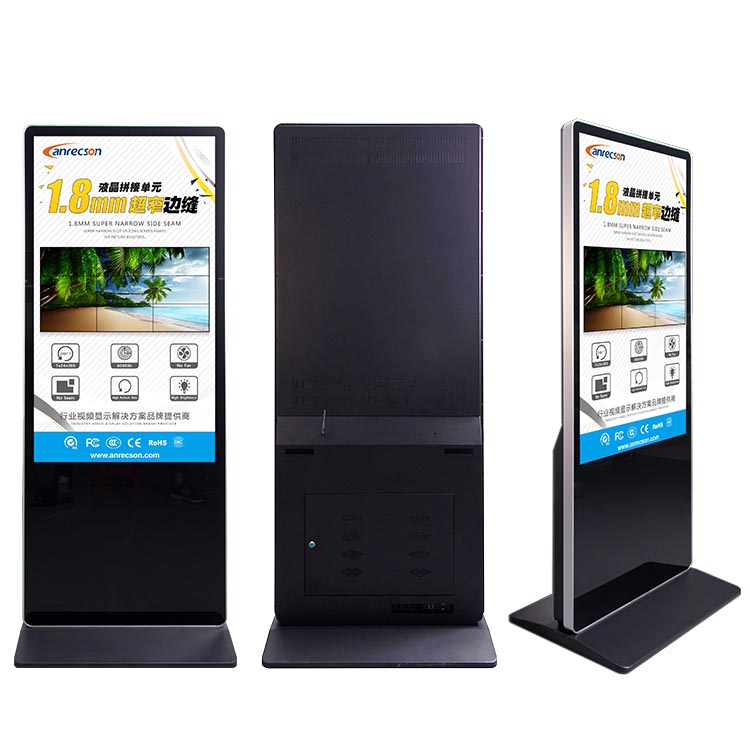

55 Inch Floor Standing Digital Signage

·55-inch, 1080p Full HD Display
·Industrial-grade, Full Metal Casing
·5 mm Protective Tempered Glass
·Supports a Wide-range of Audio/Video Encoding Formats
·Media Publish System Provides Unified Remote Management
·Quad Core Processor for Powerful Decoding Capabilities
·Built-in Media Player Software and USB Player

1. Metallic Appearance Light weight body with integrative design. The front high-transmittance tempered glass provides reliable protection.

2. Exquisite Image Industrial A+ interface, auto-coloring and image-enhancing engine.

3. Variable Materials Static and dynamic materials, including pictures, audio, video, scrolling subtitle, PDF, webpage, live video, number calling, pop-up pictures, etc.

4. Flexible Program Schedule Free schedule and district display of multiple materials. Multiple play modes with customization support.

5. Centralized Management Remotely control and manage one or more screens, such as timed startup/shutdown, quick startup/shutdown, brightness/volume timed adjustment, and screenshot preview. Remote program release and local (USB) program update.

6. Organization Permission 5-level organization available for managing materials, programs, terminals, and users. Create custom user with precise permission assignment. Multiple permission templates available.

7. Multiple Security Safeguards 3-level check of materials, programs, and schedules to prevent mistake release. Screensaver password to protect displaying. Encryption of data storage and transmission to avoid data tampering. With no default password, users can activate and set initial password to guarantee the password safety.


Specification


Mode NameMS-5501AD
Screen Size55
Active Display Area (mm)1209.6mm(W)×680.4mm(H)
Display Mode16:9
LCD TypeTFT-LCD
Resolution1920×1080
Display Color16.7M
Pixel Pitch(mm)0.630(H)×0.630(V)
Brightness(nits)300cd/
Contrast Ratio4000:1
Viewing Angle 178(H) /178(V)
Response Time 6.5ms
BacklightLED
Color systemPAL/NTSC/SECAM
Remote controllerIR Remote Controller
Basic Interface
USBx2
SDx1
HDMIx1
RJ45 (Internet Access)x1
VGAx1
Speacker Optional ( 2×5W(9Ω)
Sopport display format
Video format MPEG1, MPEG2, MPEG4, H.264, WMV, AVI, MOV, JPEG, BMP,PNG
Image Format  JPEG, BMP,PNG
Main function
O/S system uCOS
display Model loop playback, set time, inter-cut display etc
location Orientation accuracy<2mm
network supportEthermnet. WIFI, WCDMA wireless peripheral extended
support image division 1*video, 4*images. 1*roll titles. 1*weather forcasr area. support free screecn division
Main hardware spec
CPU A20 , main frequence 1.0~1,5HZ
RAM 1G
built in stotage NAND FLASH 4G
decode resolutionmax support 1080 P
OSAndroid 12
Menu languageChinese/English/other language
Power
Power supplyAC100~240V 50 /60 HZ
Maximum power consumption≦185W
Standby power consumption<1W
Working environment
working temperature0~60
Storage temperature-40~60
humidity10%~90%,no condensation
Appearance
Color/appearanceblack,customized metal case
Installationwall mount, stand mount


Certificates

Our products have got CE, RoHS, FCC, CCC certificates. We also carry out a strict quality management system in accordance with ISO9001 requirements.
