Industrial Monitor
Back to list
Description

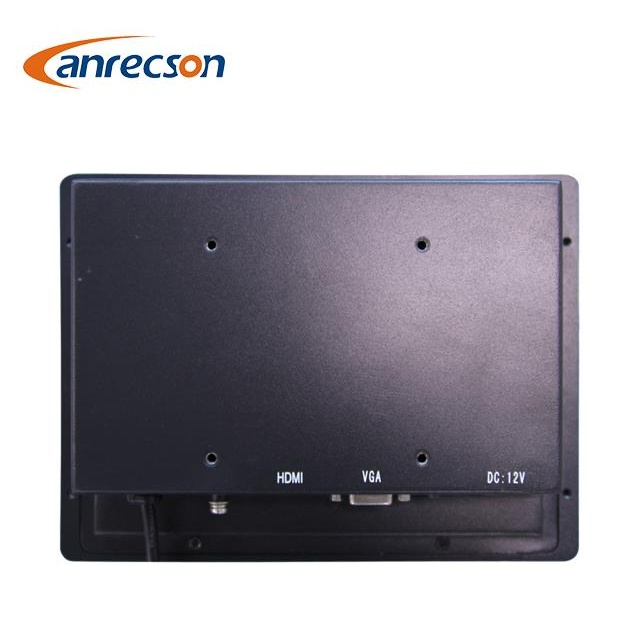

7 inch Embedded type lcd monitor

--Matel case with grade A panel ( sumsung or LG original panel )

--Support 7x24x365 continous working

--With high contrast ratio ,high response time and wide view angle

--VGA ,DVI,BNC display port

--Resistive touch screen type support Windows ,Linux,Android

--Standard size from 7''to 17'' customized service availiable

--With CCC,FCC,RoHS,CE,ISO9001 certificates

Product






Packaging & Shipping

-- Price term: EXW ,FOB ,CNF ,CIF ,etc

-- Shipping mothod ; For sample ,by DHL/Fedex/UPS/EMS,for bulk order .by air or sea

-- Payment: For sample ,100%T/T deposite in advance

For bulk order,30%T/T deposite and 70%T/T before shipment

-- More details can be discussed according to the order


Specification

Product Data Sheet

Specification

7 inch Aluminum front frame monitor

Mode Name

LC-MI0701E

Screen Size

7"

Active Display Area (mm)

154.08mm(W)×85.92mm(H)

Display Mode

16:10

LCD Type

TFT-LCD

Resolution

800*480

Display Color

16.7M

Pixel Pitch(mm)

0.0642(H)×0.1790(V)

Brightness(nits)

250cd/㎡

Contrast Ratio

500:1

Viewing Angle

140(H) /120(V)

Response Time

10ms

Backlight

LED

Interface

VGA,DVI

Optional interface

HDMI,BNC

Power

DC12V  3A   50HZ/ 60HZ/ 75HZ

Power Consumption

≦20W

Plug & Play

DDC 1/2B

OSD Control

Auto adjust, Brightness, Contrast, Hori. / Vert. Position, Clock, phase, Color, Language..

Menu

Chinese/English(other languages supported)

Mount Way

Mounting

AluminumVESA 75mm/100mm,flanges at side option

Certificate Approval

CE,RoHS,CCC,FCC,ISO9000(optional UL)

Warranty

1.5 years

Application

ATM/ Kiosk/Transportation/ Industrial Automation/Medical Treatment


Certificates

Our products have got CE, RoHS, FCC, CCC certificates. We also carry out a strict quality management system in accordance with ISO9001 requirements.


Our Company

Anrecson is a leading manufacturer, specializing in designing&producing LCD products, including touchscreen monitor, open frame monitor, industrial monitor, panel pc, digital signage, CCTV monitor and video wall, 4K Monitor, AHD/CVI/TVI/CVBS 4 in 1 monitor etc. The size ranges from 5 inch to 128 inch.


We own 15 engineers’ R&D department, which can meet your all kinds of customization requirement. We provide fast response and best solution according to each project. And professional equipment includes Pulse wave, shaking, static electricity, and temperature and humidity testing....


Anrecson Brand Monitors are widely used in traffic control center, broadcasting system, military, city square, shopping mall, bank,school and hospital,etc. Devices like ATM, Self-service kiosk, Transportation, Automatic Vending Machine, Gaming Machine, Pos, Medical Treatment, CNC Machine also use our Anrecson monitor.


Our products have got CE, RoHS, FCC, CCC certificates. We also carry out a strict quality management system in accordance with ISO9001 requirements.

1998
Founded
3500
m² Plant
170
Members
14M$
Annual Revenue
Reasons why you should choose Anrecson:
Contact us now for the best digital signage solutions!
High-end technology
Good quality
Reasonable price
Fast delivery
Excellent customer service
lnquiry Now
