Home >> Products >> Industrial Monitor
Industrial Monitor
Back to list
Description

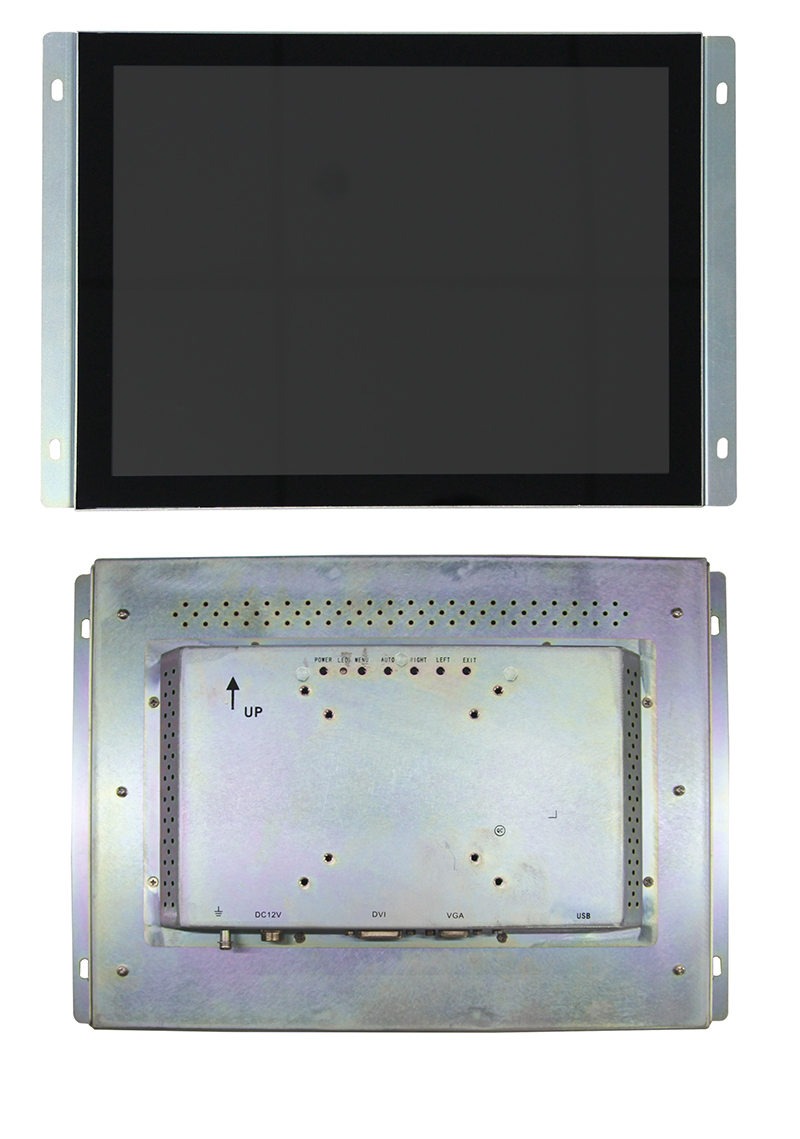

15 inch Open Frame Monitor

1. Sizes range from 5"-100"
2. Industrial grade AD Boards with wide temperature
3. Resistive/PCAP/IR/SAW touch type optional
4. High brightness/waterproof/anti-violence and so on optional
5. Outer Cases can be designed
6. OEM/ODM supported


Specification
     Specification
15" Open Frame  TOUCH  Monitor
Mode NameLC-OF1501T-CA
Screen Size15"
Active Display Area (mm)304.128mm(W)×228.096mm(H)
Display Mode4:3
LCD TypeTFT-LCD
Resolution1024×768
Display Color16.7M
Pixel Pitch(mm)0.297(H)×0.297(V)
Brightness(nits)350cd/㎡
Contrast Ratio700:1
Viewing Angle 140(H) /125(V)
Response Time 4ms
BacklightLED
InterfaceVGA,DVI
Optional interfaceHDMI,BNC
PowerDC12V  3A   50HZ/ 60HZ/ 75HZ
Power Consumption ≦20W
Plug & PlayDDC 1/2B
OSD ControlAuto adjust, Brightness, Contrast, Hori. / Vert. Position, Clock, phase, Color, Language..
MenuChinese/English(other languages supported)
TOUCH
Standard touch opetionscapacitive touch
Customized touch optionsIR touch / SAW touch / resistive 5 wire
Mount Way
Mounting VESA 75mm/100mm,flanges at side option
Certificate ApprovalCE,RoHS,CCC,FCC,ISO9000(optional UL)
Warranty1.5 years
Application
ATM/ Kiosk/Transportation/ Industrial Automation/Medical Treatment


Certificates

Our products have got CE, RoHS, FCC, CCC certificates. We also carry out a strict quality management system in accordance with ISO9001 requirements.

Our Company

Anrecson is a leading manufacturer, specializing in designing&producing LCD products, including touchscreen monitor, open frame monitor, industrial monitor, panel pc, digital signage, CCTV monitor and video wall, 4K Monitor, AHD/CVI/TVI/CVBS 4 in 1 monitor etc. The size ranges from 5 inch to 128 inch.


We own 15 engineers’ R&D department, which can meet your all kinds of customization requirement. We provide fast response and best solution according to each project. And professional equipment includes Pulse wave, shaking, static electricity, and temperature and humidity testing....


Anrecson Brand Monitors are widely used in traffic control center, broadcasting system, military, city square, shopping mall, bank,school and hospital,etc. Devices like ATM, Self-service kiosk, Transportation, Automatic Vending Machine, Gaming Machine, Pos, Medical Treatment, CNC Machine also use our Anrecson monitor.


Our products have got CE, RoHS, FCC, CCC certificates. We also carry out a strict quality management system in accordance with ISO9001 requirements.
