Home >> Products >> Industrial Monitor
Industrial Monitor
Back to list
Description

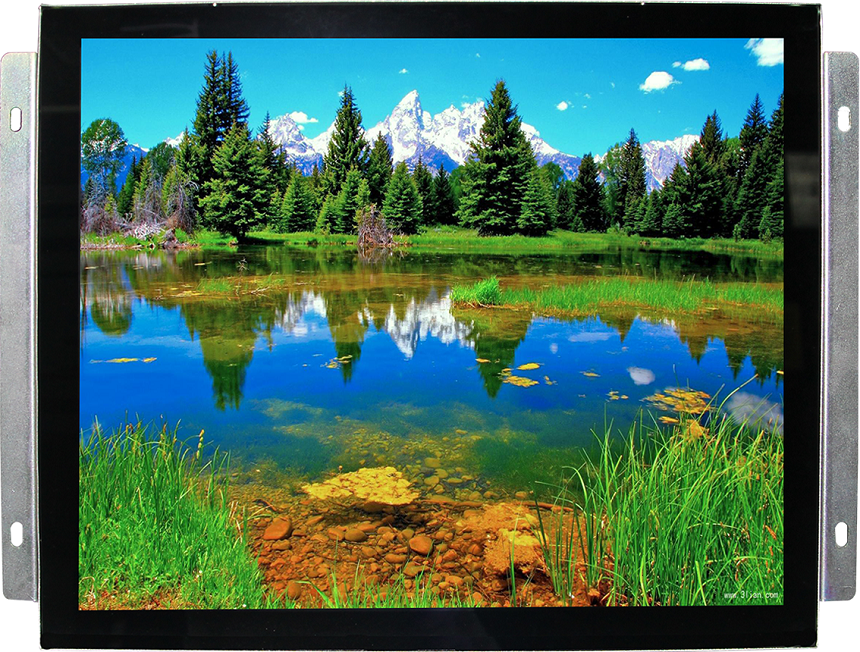

17 inch Open Frame Monitor

1. Sizes range from 5"-100"
2. Industrial grade AD Boards with wide temperature
3. Resistive/PCAP/IR/SAW touch type optional
4. High brightness/waterproof/anti-violence and so on optional
5. Outer Cases can be designed
6. OEM/ODM supported


Specification
Specification
17" Open Frame  TOUCH  Monitor
Mode NameLC-OF1701T-CA
Screen Size17″
Active Display Area (mm)337.920mm(W)×270.336mm(H)
Display Mode4:3
LCD TypeTFT-LCD
Resolution1280×1024
Display Color16.7M
Pixel Pitch(mm)0.264(H)×0.264(V)
Brightness(nits)250cd/㎡
Contrast Ratio1000:1
Viewing Angle 170(H) /160(V)
Response Time 3.8ms
BacklightLED backlights
InterfaceVGA,DVI
Optional interfaceHDMI,BNC
PowerDC12V  3A   50HZ/ 60HZ/ 75HZ
Power Consumption ≦15W
Plug & PlayDDC 1/2B
OSD ControlAuto adjust, Brightness, Contrast, Hori. / Vert. Position, Clock, phase, Color, Language..
MenuChinese/English(other languages supported)
TOUCH
Standard touch opetions capacitive touch
Customized touch optionsIR touch / SAW touch / resistive 5 wire
Mount Way
Mounting VESA 75mm/100mm,flanges at side option
Certificate ApprovalCE,RoHS,CCC,FCC,ISO9000(optional UL)
Warranty1.5 years
Application
ATM/ Kiosk/Transportation/ Industrial Automation/Medical Treatment


Certificates

Our products have got CE, RoHS, FCC, CCC certificates. We also carry out a strict quality management system in accordance with ISO9001 requirements.

Our Company

Anrecson is a leading manufacturer, specializing in designing&producing LCD products, including touchscreen monitor, open frame monitor, industrial monitor, panel pc, digital signage, CCTV monitor and video wall, 4K Monitor, AHD/CVI/TVI/CVBS 4 in 1 monitor etc. The size ranges from 5 inch to 128 inch.


We own 15 engineers’ R&D department, which can meet your all kinds of customization requirement. We provide fast response and best solution according to each project. And professional equipment includes Pulse wave, shaking, static electricity, and temperature and humidity testing....


Anrecson Brand Monitors are widely used in traffic control center, broadcasting system, military, city square, shopping mall, bank,school and hospital,etc. Devices like ATM, Self-service kiosk, Transportation, Automatic Vending Machine, Gaming Machine, Pos, Medical Treatment, CNC Machine also use our Anrecson monitor.


Our products have got CE, RoHS, FCC, CCC certificates. We also carry out a strict quality management system in accordance with ISO9001 requirements.

1998
Founded
3500
m² Plant
170
Members
14M$
Annual Revenue
Reasons why you should choose Anrecson:
Contact us now for the best digital signage solutions!
High-end technology
Good quality
Reasonable price
Fast delivery
Excellent customer service
lnquiry Now
