Industrial Monitor
Back to list
Description

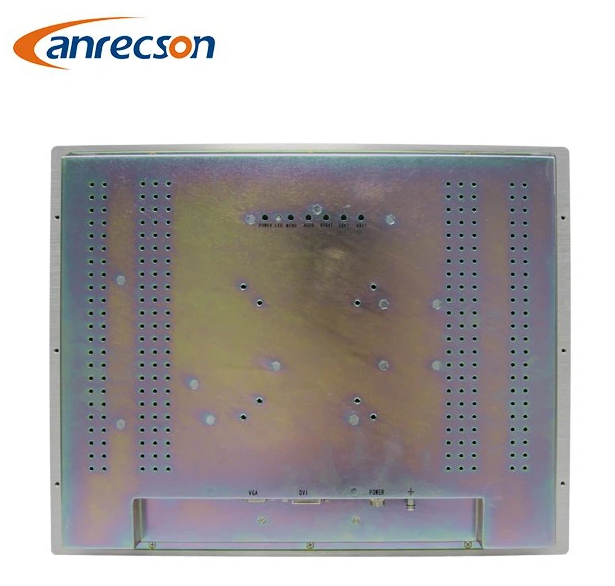

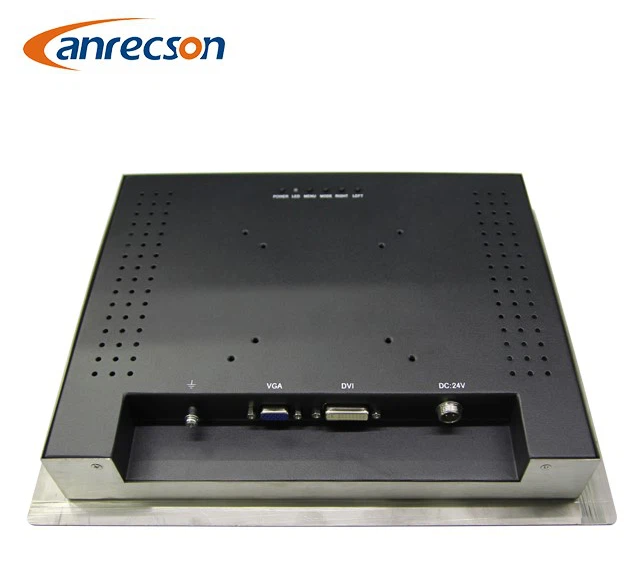

15 Inch Panel Mount Industrial Monitor

Multiple interface monitor: Support HDMI/DVI/VGA/BNC input, suitable for PC, TV, CCTV, camera and industrial applications
High Performance: High quality guaranteed, stable performance, you can use it with confidence.
2 Mounting methods: Support both embedded and wall-mounted installation modes, which can be embedded on the control platform or device, and also support wall mounting.
Resistive Touchscreen: 15" 4:3 oversized embedded display, supporting for resistance touch, with wider display area.
Feature: Industrial aluminum shell design, more durable to adapt to harsh environment.

Introducing Anrecson 15" Embedded Industrial LCD Monitor

- designed with the most rugged and reliable features to meet the needs of industrial environments. Our display monitor offers a wide range of features to ensure that your operations run smoothly and efficiently.

- Built with an IP65 rated aluminum front frame, our display monitor is highly resistant to water, dust, and other harsh environmental conditions. Additionally, it comes equipped with industrial-grade panels and mainboards that allow for 24/7/365 continuous operation.

- With an array of flexible interface options, including HDMI, DVI, VGA, and BNC, the monitor is easily adapted to your specific needs.

- the durability and stability of our display monitor make it an ideal choice for use in industrial environments. Its high reliability ensures uninterrupted operation and maximizes uptime, while its stability guarantees the highest level of performance.

- With the optional touch screen capability, you can optimize your operations and improve productivity.

- We are proud to offer customizable options with our display monitor, so you can tailor it to meet your specific business needs. Whether you choose to add touch screen interaction or opt for a unique interface package, we are committed to delivering a product that meets your requirements.








Specification

SPECIFICATIONS :



15" Industrial LCD Monitor
Mode NameLC-MI15001
Screen Size15"
Active Display Area (mm)304.128mm(W)×228.096mm(H)
Display Mode4:3
LCD TypeTFT-LCD
Resolution1024×768
Display Color16.7M
Pixel Pitch(mm)0.297(H)×0.297(V)
Brightness(nits)350cd/㎡
Contrast Ratio700:1
Viewing Angle140(H) /125(V)
Response Time4ms
BacklightLED
InterfaceVGA,DVI
Optional interfaceHDMI,BNC
PowerDC12V 3A 50HZ/ 60HZ/ 75HZ
Power Consumption≦20W
Plug & PlayDDC 1/2B
OSD ControlAuto adjust, Brightness, Contrast, Hori. / Vert. Position, Clock, phase, Color, Language..
MenuChinese/English(other languages supported)
Mount Way
MountingVESA 75mm/100mm,embedded/panel mount
Certificate ApprovalCE,RoHS,CCC,FCC,ISO9001(optional UL)
Warranty1.5 years
Application
ATM/ Kiosk/Transportation/ Industrial Automation/Medical Treatment


Certificates

Our products have got CE, RoHS, FCC, CCC certificates. We also carry out a strict quality management system in accordance with ISO9001 requirements.


Our Company

Anrecson is a leading manufacturer, specializing in designing&producing LCD products, including touchscreen monitor, open frame monitor, industrial monitor, panel pc, digital signage, CCTV monitor and video wall, 4K Monitor, AHD/CVI/TVI/CVBS 4 in 1 monitor etc. The size ranges from 5 inch to 128 inch.


We own 15 engineers’ R&D department, which can meet your all kinds of customization requirement. We provide fast response and best solution according to each project. And professional equipment includes Pulse wave, shaking, static electricity, and temperature and humidity testing....


Anrecson Brand Monitors are widely used in traffic control center, broadcasting system, military, city square, shopping mall, bank,school and hospital,etc. Devices like ATM, Self-service kiosk, Transportation, Automatic Vending Machine, Gaming Machine, Pos, Medical Treatment, CNC Machine also use our Anrecson monitor.


Our products have got CE, RoHS, FCC, CCC certificates. We also carry out a strict quality management system in accordance with ISO9001 requirements.
