Industrial Monitor
Back to list
Description

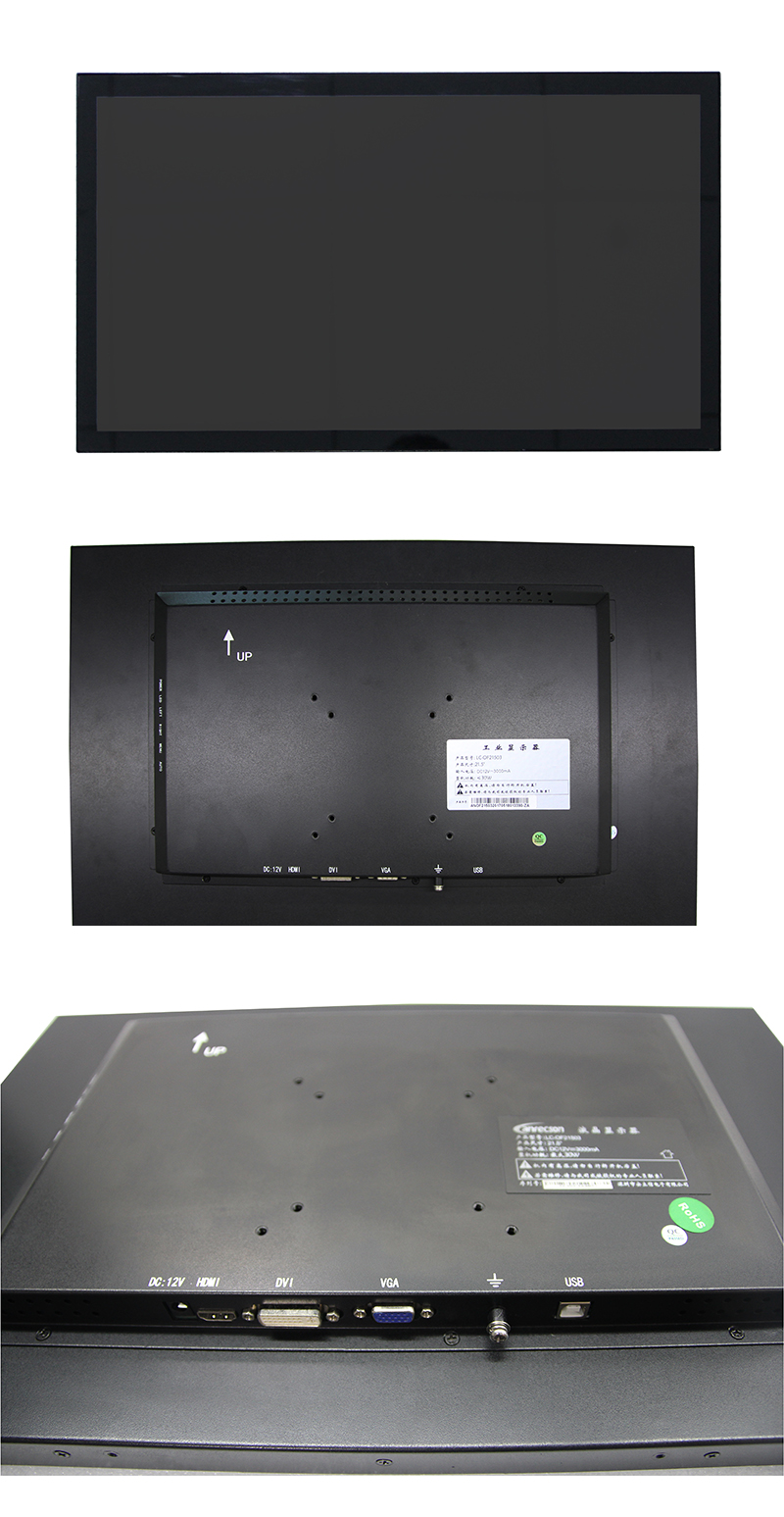

21.5 inch Open Frame Monitor

1. Sizes range from 5"-100"
2. Industrial grade AD Boards with wide temperature
3. Resistive/PCAP/IR/SAW touch type optional
4. High brightness/waterproof/anti-violence and so on optional
5. Outer Cases can be designed
6. OEM/ODM supported



Specification
Specification
21.5" Open Frame  TOUCH  Monitor
Mode NameLC-OF2201T-CA
Screen Size21.5"
Active Display Area (mm)476.64mm(W)×268.11mm(H)
Display Mode16:9
LCD TypeTFT-LCD
Resolution1920×1080
Display Color16.7M
Pixel Pitch(mm)0.248(H)×0.248(V)
Brightness(nits)250cd/㎡
Contrast Ratio1000:1
Viewing Angle 170(H) /160(V)
Response Time 5ms
BacklightLED backlight
InterfaceVGA,DVI
Optional interfaceHDMI,BNC
PowerDC12V  3A   50HZ/ 60HZ/ 75HZ
Power Consumption ≦28W
Plug & PlayDDC 1/2B
OSD ControlAuto adjust, Brightness, Contrast, Hori. / Vert. Position, Clock, phase, Color, Language..
MenuChinese/English(other languages supported)
TOUCH
Standard touch opetions
Customized touch optionscapacitive touch /resistive 5 wire IR touch / SAW touch /
Mount Way
Mounting VESA 75mm/100mm,flanges at side option
Certificate ApprovalCE,RoHS,CCC,FCC,ISO9000(optional UL)
Warranty1.5 years
Application
ATM/ Kiosk/Transportation/ Industrial Automation/Medical Treatment


Certificates

Our products have got CE, RoHS, FCC, CCC certificates. We also carry out a strict quality management system in accordance with ISO9001 requirements.
