- High quality 17 inch TFT LCD monitor and EASY monting design
- VGA,DVI input BNC optional
- Resolution 1280*1024
- AD board is industrial grade with wide temperature
- High quality 17 inch TFT LCD monitor and EASY monting design
- VGA,DVI input BNC optional
- Resolution 1280*1024
- AD board is industrial grade with wide temperature
- High quality 17 inch TFT LCD monitor and EASY monting design
- VGA,DVI input BNC optional
- Resolution 1280*1024
- AD board is industrial grade with wide temperature
- Supporting 7x24x365 days continuously working supports
- With CE FCC RoHS ISO9001 certifications
- The standard size is from 7'' to 17''inch ,coustomized service available
Product Data Sheet
Specification | |

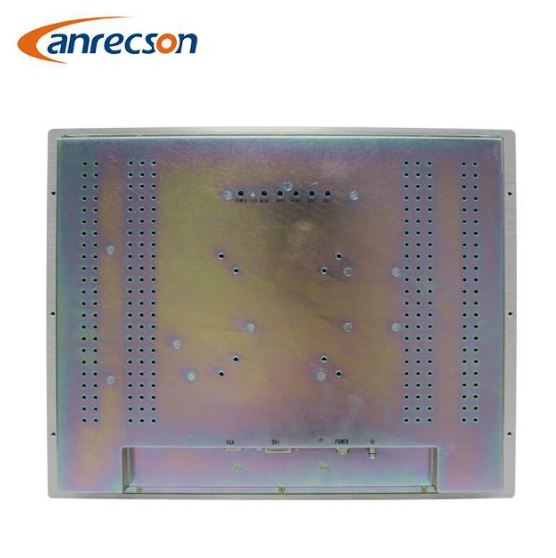

17" Aluminum frame Monitor | |
Mode Name | LC-MI1701E |
Screen Size | 17" |
Active Display Area (mm) | 337.92mm(W)×270.336mm(H) |
Display Mode | 4:3 |
LCD Type | TFT-LCD |
Resolution | 1280X1024 |
Display Color | 16.7M |
Pixel Pitch(mm) | 0.297(H)×0.297(V) |
Brightness(nits) | 250cd/㎡ |
Contrast Ratio | 1000:1 |
Viewing Angle | 140(H) /125(V) |
Response Time | 5ms |
Backlight | LED |
Interface | VGA,DVI |
Optional interface | HDMI,BNC |
Power | DC12V 3A 50HZ/ 60HZ/ 75HZ |
Power Consumption | ≦20W |
Plug & Play | DDC 1/2B |
OSD Control | Auto adjust, Brightness, Contrast, Hori. / Vert. Position, Clock, phase, Color, Language.. |
Menu | Chinese/English(other languages supported) |
Mount Way | |
Mounting | VESA 75mm/100mm,flanges at side option |
Certificate Approval | CE,RoHS,CCC,FCC,ISO9000(optional UL) |
Warranty | 1.5 years |
Application | |
ATM/ Kiosk/Transportation/ Industrial Automation/Medical Treatment | |
Our products have got CE, RoHS, FCC, CCC certificates. We also carry out a strict quality management system in accordance with ISO9001 requirements.
Anrecson is a leading manufacturer, specializing in designing&producing LCD products, including touchscreen monitor, open frame monitor, industrial monitor, panel pc, digital signage, CCTV monitor and video wall, 4K Monitor, AHD/CVI/TVI/CVBS 4 in 1 monitor etc. The size ranges from 5 inch to 128 inch.
We own 15 engineers’ R&D department, which can meet your all kinds of customization requirement. We provide fast response and best solution according to each project. And professional equipment includes Pulse wave, shaking, static electricity, and temperature and humidity testing....
Anrecson Brand Monitors are widely used in traffic control center, broadcasting system, military, city square, shopping mall, bank,school and hospital,etc. Devices like ATM, Self-service kiosk, Transportation, Automatic Vending Machine, Gaming Machine, Pos, Medical Treatment, CNC Machine also use our Anrecson monitor.
Our products have got CE, RoHS, FCC, CCC certificates. We also carry out a strict quality management system in accordance with ISO9001 requirements.
High-end technology Good quality Reasonable price Fast delivery Excellent customer service
