Home >> Products >> Digital Signage
Digital Signage
Back to list
Description

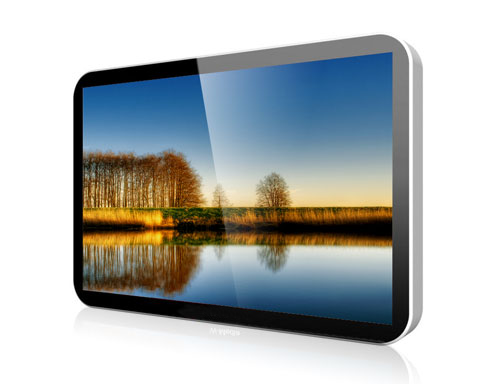

32 inch Network Version Digital Signage with Android OS

·Screen Sizes: 32"
·HD Screen Display
·Built-In Speakers
·WIFI & Bluetooth Enabled
·SuperSign Content Management Software
·Adaptable with AV Control Systems
·Placement Style: Wall Mount




Specification


Mode NameMS-3201AD
Screen Size32″
Active Display Area (mm)697.6845mm(W)×392.256mm(H)
Display Mode16:9
LCD TypeTFT-LCD
Resolution1920×1080
Display Color16.7M
Pixel Pitch(mm)0.51075(H)×0.51075(V)
Brightness(nits)300cd/㎡
Contrast Ratio3000:1
Viewing Angle 178(H) /178(V)
Response Time 20ms
BacklightLED
Color systemPAL/NTSC/SECAM
Remote controllerIR Remote Controller
Basic Interface
USBx2
SDx1
HDMIx1
RJ45 (Internet Access)x1
VGAx1
Speacker Optional ( 2×5W(9Ω)
Sopport display format
Video format MPEG1, MPEG2, MPEG4, H.264, WMV, AVI, MOV, JPEG, BMP,PNG
Image Format  JPEG, BMP,PNG
Main function
O/S system uCOS
display Model loop playback, set time, inter-cut display etc
location Orientation accuracy<2mm
network supportEthermnet. WIFI, WCDMA wireless peripheral extended
support image division 1*video, 4*images. 1*roll titles. 1*weather forcasr area. support free screecn division
Main hardware
CPU A20 , main frequence 1.0~1,5HZ
RAM 1G
built in stotage NAND FLASH 4G
decode resolutionmax support 1080 P
OSAndroid 7
Menu languageChinese/English/other language
Power
Power supplyAC100~240V 50 /60 HZ
Maximum power consumption≦115W
Standby power consumption<1W
Working environment
working temperature0℃~60℃
Storage temperature-40℃~60℃
humidity10%~90%,no condensation
Appearance
Color/appearanceblack,customized metal case
Installationwall mount



Certificates

Our products have got CE, RoHS, FCC, CCC certificates. We also carry out a strict quality management system in accordance with ISO9001 requirements.

Our Company

Anrecson is a leading manufacturer, specializing in designing&producing LCD products, including touchscreen monitor, open frame monitor, industrial monitor, panel pc, digital signage, CCTV monitor and video wall, 4K Monitor, AHD/CVI/TVI/CVBS 4 in 1 monitor etc. The size ranges from 5 inch to 128 inch.


We own 15 engineers’ R&D department, which can meet your all kinds of customization requirement. We provide fast response and best solution according to each project. And professional equipment includes Pulse wave, shaking, static electricity, and temperature and humidity testing....


Anrecson Brand Monitors are widely used in traffic control center, broadcasting system, military, city square, shopping mall, bank,school and hospital,etc. Devices like ATM, Self-service kiosk, Transportation, Automatic Vending Machine, Gaming Machine, Pos, Medical Treatment, CNC Machine also use our Anrecson monitor.


Our products have got CE, RoHS, FCC, CCC certificates. We also carry out a strict quality management system in accordance with ISO9001 requirements.
